SIE60 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Superior performance with an accuracy level of up to ±0.5 micrometers;

High environmental reliability with IP67 protection, immune to dust, oil, and moisture ;

Diverse grating materials supporting self-assembly of motor bases and “gridless” design;

Strong durability of the grating, ensuring stable performance in high and low temperatures with a low coefficient of thermal expansion.





Technical specifications
System

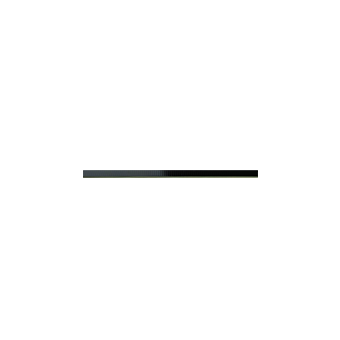

Grating scale 2mm
Resolution 1μm、0.5μm
Grating scale accuracy ±10μm/m
Repetitive positioning accuracy ±0.5μm

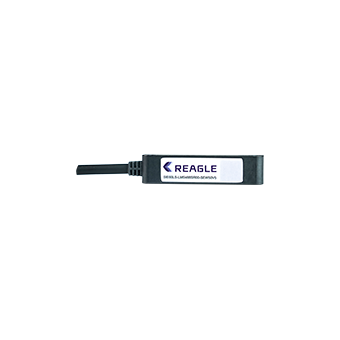

Reading head and ruler distance 0.6±0.1mm
Displacement speed 24m/s
Electrical Interface ABZ、RS485
Electrical
Supply Voltage 5V±5%
Differential Output Level High leve ≥2.4V；Low level≤0.7V
Environment
Operating Temperature -20℃~85℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating IP 67
Shock Impact acceleration 980m/s 2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s 2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
