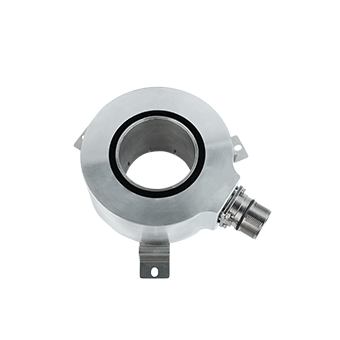

DIN100 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Metal casing, compact and shock-resistant structure;

Based on inductive measurement principles, offering  high precision, reliability, and stability;

Hollow shaft with a diameter of 20-50mm, suitable for  installation in limited spaces;

Stable and controllable autonomous supply.







Technical specifications
System
Outer Diameter φ100mm
Shaft Diameter φ16 / 20 / 25 / 30 / 42 / 48 / 50mm
Pulses per revolution 1-65536ppr
Operating Speed ≤3600rpm
Maximum response frequency 160kHz
Electrical
Supply Voltage 5-30V
Signal output method HTL ( Vout = Vin , 5V = TTL)
Environment
EMC Features IEC61000-3
Operating Temperature -40℃~105℃
Humidity 35~90% RH
IP Rating IP 65
Shock 1,000m/s 2 , sweeping in the X, Y, Z directions, repeated 3 times.
Vibration 10 ~ 500 Hz, vertical amplitude of 2mm or 150m/s 2 , sweeping in the X, Y, Z directions for 11 minutes per sweep, repeated 3 times.
