SROI42 10000-line

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

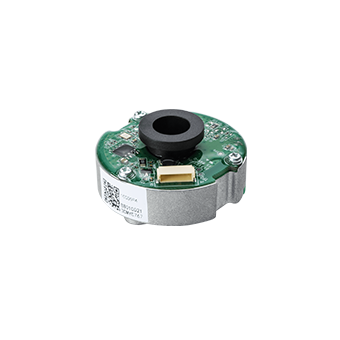

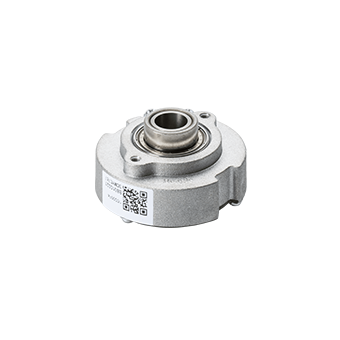

The SROI42 series 10,000-line incremental optical rotary encoder features a compact design, lightweight construction, and a precision locking shaft. It is suitable for applications in industries such as servo systems, textiles, and packaging.

Product characteristics

High resolution with 10,000 lines;

Communication cable can reach a maximum length of 50 meters;

RS485 interface, bidirectional asynchronous serial communication;

Stringent EMC testing to meet harsh electromagnetic environment conditions;

Product advantages

Bus communication, departing from pulse-type interfaces;

Optical grating, significantly improved performance;

Long-distance transmission, outstanding cost advantages.

Technical specifications

System

Resolution	10000ppr
Communication Specification	RS485
Baud Rate	1Mbps
Signal Format	Serial Communication Protocol

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	90mA
Differential Output Level	High level≥3.5V; Low level≤1.7V
Insulation Resistance	10MΩ
Edge Change Time	100ns

Environment

EMC Features	IEC61000-4
Operating Temperature	-10℃~+85℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating	IP 40
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
