KON113 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

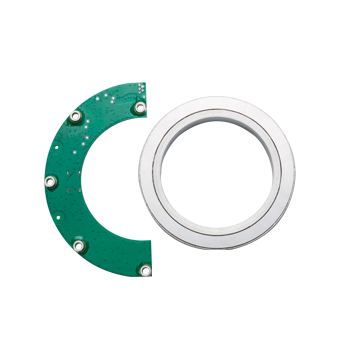

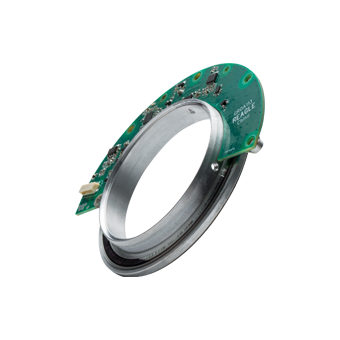

The KON113 series encoder is an absolute rotary encoder, based on optical principles, offering high accuracy. With a reflective optical principle, it achieves a lower installation height compared to standard optical encoders. When paired with Reagle Sensing's installation fixtures, the installation process becomes simple and alignment is precise.

Product characteristics

High precision, with a repeated positioning accuracy  of <±0.7";

High dynamic response, achieving an effective  resolution of 21 bits;

Radial translation assembly method for convenient  installation.

Product advantages

Non-contact installation;
Ultra-thin structural design;
Suitable for various complex operating conditions.

Technical specifications
System
Resolution Single-turn: 20bit, 23bit, 24bit；Multi-turn: 16bit
Communication Specification RS485
Baud Rate 2.5Mbps
Signal Format Serial Communication Protocol
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 130mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 50MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-4
Operating Temperature -20℃~95℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration 1The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
Reflective Hollow Shaft Absolute Encoder KON113-M16S20SN00-HR63C0V5 KON113-M16S24SN00-HR63C0V5 specification V1.0
Reflective Hollow Shaft Absolute Encoder KON113-M16S23ST00-HR63C0V5 specification V1.0
3D Model
【整機】GROA113中空光電編碼器(A00)
